Correderas con cojinetes de bolas de 3 pliegues con apertura por empuje

Diseñada con tecnología avanzada de cierre suave al presionar, esta corredera combina una comodidad inigualable con un diseño elegante. Una suave presión activa el mecanismo sin tirador, abriendo los cajones con suavidad y manteniendo una estética minimalista. El cierre suave integrado garantiza un cierre silencioso y controlado para proteger los artículos y prolongar su vida útil. Fabricada en acero de alta calidad con ingeniería de precisión, esta corredera de apertura por presión y cierre suave resiste el uso diario, ideal para gabinetes de cocina, armarios y cajas de herramientas industriales. Su diseño de triple extensión maximiza el espacio: compacta cuando está cerrada, se extiende completamente para acceder a almacenamiento profundo. Transforme espacios limitados en áreas funcionales con esta solución duradera y de fácil acceso.

Correo electrónico

3 Fold Push To Open Ball Bearing Slides

Width: 45mm

Material: cold-rolled steel

Length: 300-600mm(12dddhhh-24dddhhh)

Thickness:12.7±0.2mm

Maximum load: 30kg-45kg

The installed forms: drawer slide(Built-in drawer installation)

Surface treatment: electrophoresis black, electro-galvanized

Scope: Cabinet/Home furniture/Office furniture/Decoration project etc

Thickness Range：

1、1.2X1.2X1.4mm 2、1.0X1.0X1.2mm

Note: This product specification model is more,the parameters are for reference only, the specific data, to prevail in kind

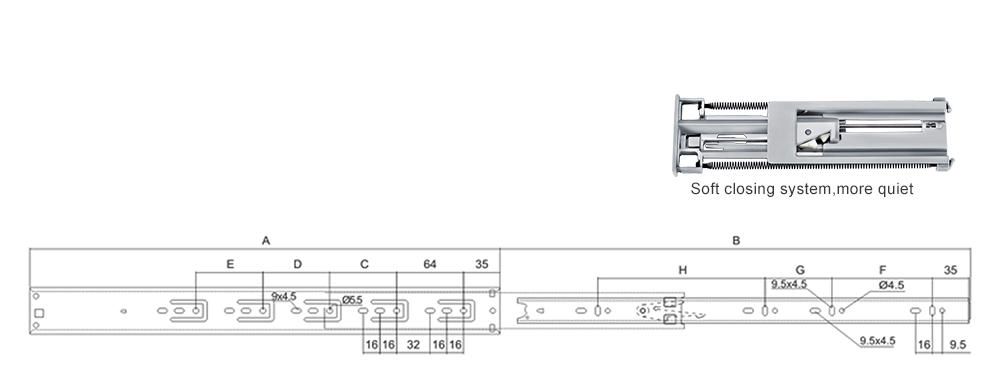

Installation method：

Push to Open Ball Bearing Slides

Products Information

3 Fold Push to Open Ball Bearing Slides

Feature

Ficgoal 3-Fold Ball Bearing Slides: Precision Engineering for Durability

Crafted from high-grade cold-rolled steel with precision ball bearings, our 3-fold slides ensure smooth, silent operation and 45KG load capacity—ideal for residential and commercial storage. Available in 36-45mm widths and classic black/white finishes, they blend functionality with style for kitchen cabinets, bathroom vanities, and office furniture.

With 22 years of German-standard manufacturing, each slide undergoes 8 rigorous quality tests (load-bearing, corrosion resistance, etc.) to exceed industry standards. Transform ordinary storage into a testament to precision engineering that stands the test of time.

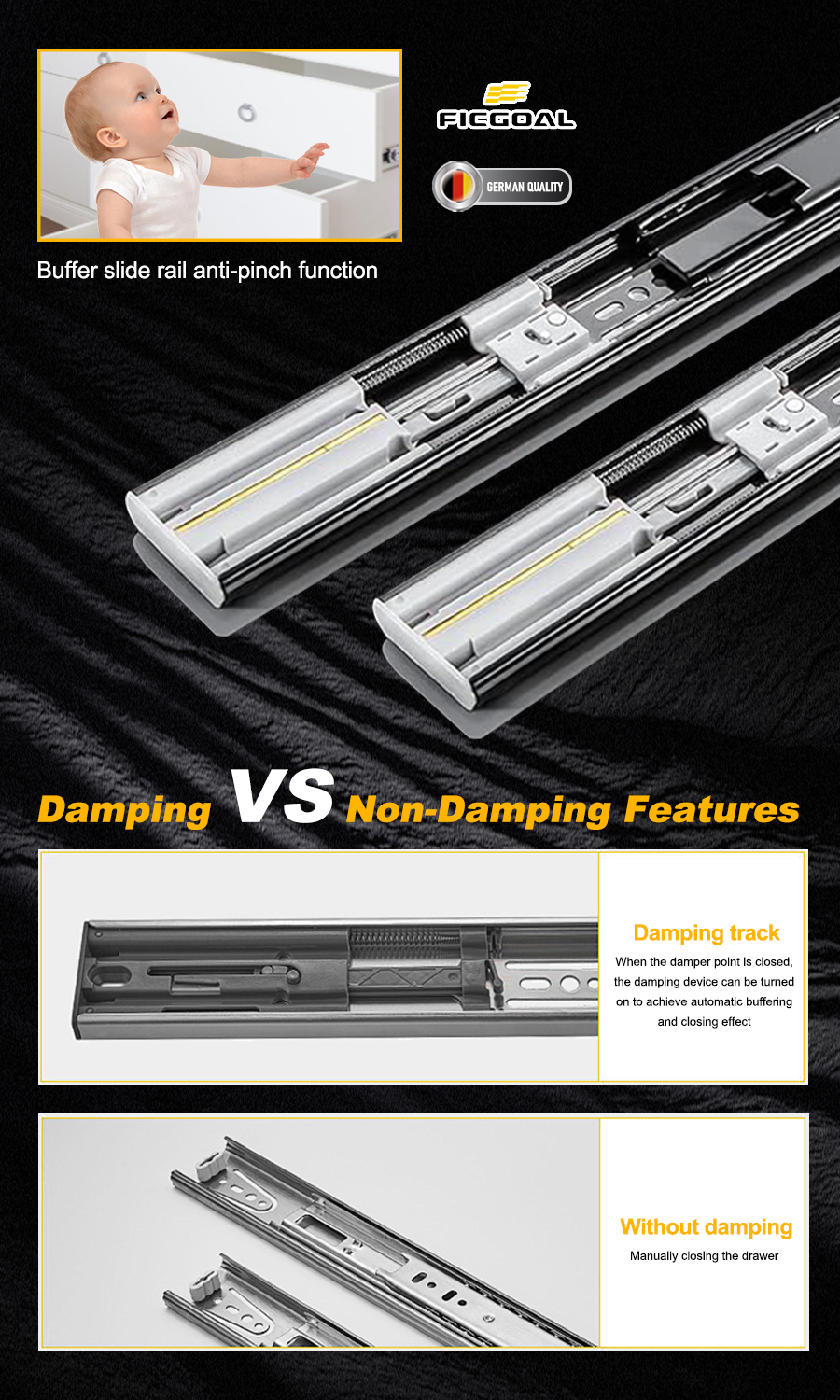

3-Fold Push-to-Open Soft Close Slide: Handle-Free Convenience

Redefine storage with our push-to-open design—simply press to activate smooth gliding, perfect for hands-full scenarios in kitchens, bathrooms, or toolboxes. The soft-close mechanism ensures silent, controlled closure to protect items, while 3-fold extension maximizes deep storage access.

Constructed from corrosion-resistant high-grade steel with low-friction bearings, this slide suits modern and traditional spaces alike. Enjoy a sleek, handle-free aesthetic without compromising durability or accessibility.

Products Equipments

Ficgoal operates two fully automated factories outfitted with advanced production lines, where precision and efficiency converge. These state-of-the-art facilities harness cutting-edge technology to uphold the highest manufacturing standards, ensuring each product meets rigorous quality benchmarks. By integrating automated processes, we not only optimize productivity but also deliver unwavering consistency in every hardware component—solidifying our role as an industry leader in precision engineering.

3 Fold Push to Open Ball Bearing Slides

ball bearing slide rails

Push to Open Ball Bearing Slides

Packing and Delivery

At Ficgoal, we ensure that our products are meticulously handled from packaging to transportation. Each item is independently wrapped to safeguard against damage, then placed into durable boxes with clear labeling for easy identification. These boxes are carefully loaded into shipping containers, maximizing space while ensuring stability to prevent movement during transit. The containers are stored in our spacious, well-organized warehouse, which maintains optimal conditions to preserve product quality. When it’s time for dispatch, we rely on trusted logistics partners to transport the goods efficiently, keeping our customers informed throughout the process. This comprehensive approach guarantees that our products reach their destinations in pristine condition, ready for use.

3 Fold Push to Open Ball Bearing Slides
